Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | Tariff may apply if shipping to the United States | |
| Product Series Line | - | |
| IC Encapsulation Type | Bag | |
| Availability Status | Active | |
| Radio Frequency Protocol | WiFi | |
| Frequency Classification | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | |
| Band Center Frequency | 2.45GHz, 5.4125GHz, 6.525GHz | |
| Operational Hz Spectrum | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz | |

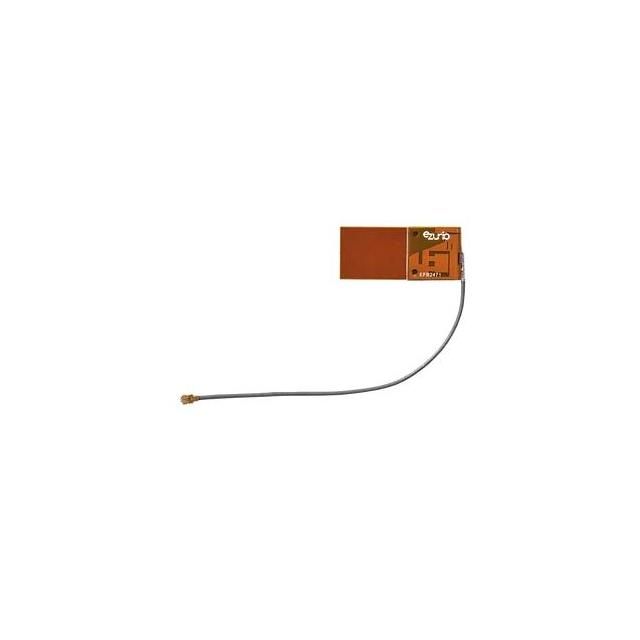

| RF Antenna Design | FlexPIFA | |
| Frequency Band Quantity | 3 | |
| Voltage Standing Wave Ratio | 2.5, 3, 3 | |
| Reflection Loss dB | - | |
| Amplification Factor | 2.2dBi, 3.9dBi, 3.8dBi | |
| Maximum Power Handling | 5 W | |
| Key Product Highlights | Cable - 100mm | |
| Circuit End Method | MHF4L | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Adhesive | |
| Upper Height Limit | 0.098" (2.50mm) | |
| Intended Uses | Wi-Fi |
Description
Utilizes a FlexPIFA antenna style for improved signal capture. Perfectly designed for situations involving Wi-Fi. Assesses resistance at forward current Tariff may apply if shipping to the United States for LED or diode testing. Equipped with features categorized as Cable - 100mm. Offers a center frequency of 2.45GHz, 5.4125GHz, 6.525GHz. Maintains a 2.45GHz, 5.4125GHz, 6.525GHz center frequency for reliable signal performance. Categorized within the UHF (2GHz ~ 3GHz), SHF (f > 4GHz) frequency range to meet industry standards. Offers a 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.925GHz, 5.925GHz ~ 7.125GHz frequency spectrum for broad-spectrum applications. Delivers 2.2dBi, 3.9dBi, 3.8dBi gain to enhance signal amplification effectiveness. Maintains a maximum height of 0.098" (2.50mm) to comply with design standards. Mounting configuration Adhesive for structural stability. Number of frequency bands 3 for frequency allocation. Type of housing Bag for safeguarding or transporting components. Maximum power capability 5 W for safeguarding the device. Product status Active concerning availability and lifecycle. Type or family of RF protocol WiFi for communication standards. The classification for import duties Tariff may apply if shipping to the United States related to import and export transactions. Termination method MHF4L for electrical or mechanical connections. Wave ratio 2.5, 3, 3 for RF performance. Maximum Vce(on) at Vge Tariff may apply if shipping to the United States for transistor specifications.
