Product Attributes
| Type | Description | |
|---|---|---|
| Category | ||
| Import Duty Classification | - | |

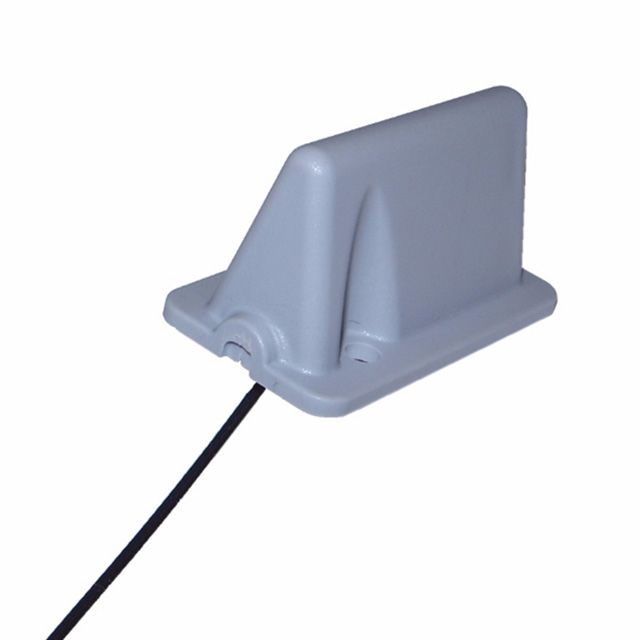

| Product Series Line | External Antenna | |
| IC Encapsulation Type | Bulk | |
| Availability Status | Obsolete | |
| Radio Frequency Protocol | 802.15.4, Bluetooth, WiFi | |
| Frequency Classification | UHF (1GHz ~ 2GHz) | |
| Band Center Frequency | 2.4GHz | |
| Operational Hz Spectrum | 2.4GHz ~ 2.485GHz | |
| RF Antenna Design | - | |
| Frequency Band Quantity | 1 | |
| Voltage Standing Wave Ratio | 3.1 | |
| Reflection Loss dB | - | |
| Amplification Factor | 3dBi | |
| Maximum Power Handling | - | |
| Key Product Highlights | Cable - 260mm | |
| Circuit End Method | U.FL (UMCC), I-PEX MHF1 | |
| Dust Water Resistance Rating | - | |
| Quality Grade Level | - | |
| Certification Qualification | - | |
| Attachment Mounting Style | Chassis Mount | |
| Upper Height Limit | 0.630" (16.00mm) | |
| Intended Uses | Bluetooth, WLAN, Zigbee™ |
Description
Perfectly designed for situations involving Bluetooth, WLAN, Zigbee™. Equipped with features categorized as Cable - 260mm. Offers a center frequency of 2.4GHz. Maintains a 2.4GHz center frequency for reliable signal performance. Categorized within the UHF (1GHz ~ 2GHz) frequency range to meet industry standards. Offers a 2.4GHz ~ 2.485GHz frequency spectrum for broad-spectrum applications. Delivers 3dBi gain to enhance signal amplification effectiveness. Maintains a maximum height of 0.630" (16.00mm) to comply with design standards. Mounting configuration Chassis Mount for structural stability. Number of frequency bands 1 for frequency allocation. Type of housing Bulk for safeguarding or transporting components. Product status Obsolete concerning availability and lifecycle. Type or family of RF protocol 802.15.4, Bluetooth, WiFi for communication standards. Classification series for the product or component External Antenna. Termination method U.FL (UMCC), I-PEX MHF1 for electrical or mechanical connections. Wave ratio 3.1 for RF performance.
